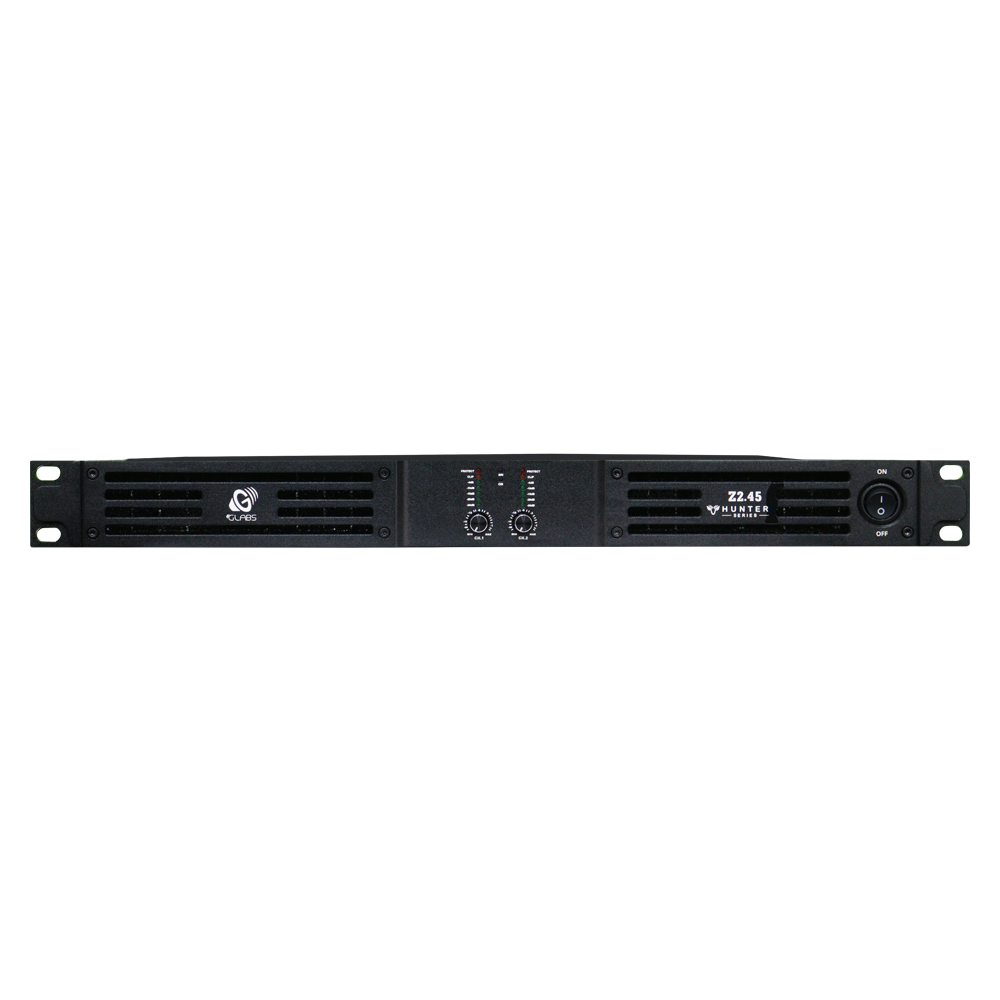

GLABS Z2.45 AMPLIFIER

Output Power Stereo (RMS) – 2 x 4500W @ 8ohm

Output Power Stereo (RMS) – 2 x 8000W @ 4ohm

Output Power Stereo (RMS) – 2 x 11100W @ 2ohm

Bridge Mode (RMS) – 9000W @ 16ohm

Bridge Mode (RMS) – 16000W @ 8ohm

Bridge Mode (RMS) – 18900W @ 4ohm

Frequency Response – 10Hz-20KHz/±0.35dB

THD+N (20Hz-20KHz) – <0.5% @ 801kHz

S/N Rate (20Hz-20 kHz) – >102dB

Crosstalk (1KHz) – >70dB

Slew Rate – >30ν/με

Damping Factor – >5000 (8Ohm) 20Hz to 100Hz

Voltage Gain – 50dB (0.775V:190V)

Input Sensitivity – 0.775V,1V,1.4V,2V

Input Impedance – 10K Ω balance/20K Ω unbalance

Input Connectors – XLR Active balanced pin1 gnd/pin 2+/pin3-

Output Connectors – 2 Neutrik NL4 Sockets /2 input posts

Protection – short-circuit, DC, overload, overheat, ultrasonic, RF, voltage peak limit,

Operating Voltage – AC 100V-260V/50Hz-60Hz

Fuse – F-30A*2

Power consumption (Idle) – <170W

Power consumption (Max) – <9500W

Circuit – Class D

Dimensions (LxWxD) – 500mmx483mm×45mm (1U)

Net Weight – 12.5Kg

Gross Weight – 16.5 Kg

Description

Extreme Output Power
- Stereo RMS:
  - 2 × 4500W @ 8Ω
  - 2 × 8000W @ 4Ω
  - 2 × 11,100W @ 2Ω
- Bridge Mode RMS:
  - 9000W @ 16Ω
  - 16,000W @ 8Ω
  - 18,900W @ 4Ω
Audio Performance
- Frequency response: 10Hz–20kHz (±0.35dB)
- THD+N: <0.5% (20Hz–20kHz)
- Signal-to-Noise Ratio: >102dB
- Crosstalk: >70dB @ 1kHz
- Damping factor: >5000 (8Ω, 20Hz–100Hz)
Professional Design
- Class-D circuit for high efficiency
- Voltage gain: 50dB
- Selectable input sensitivity: 0.775V / 1V / 1.4V / 2V

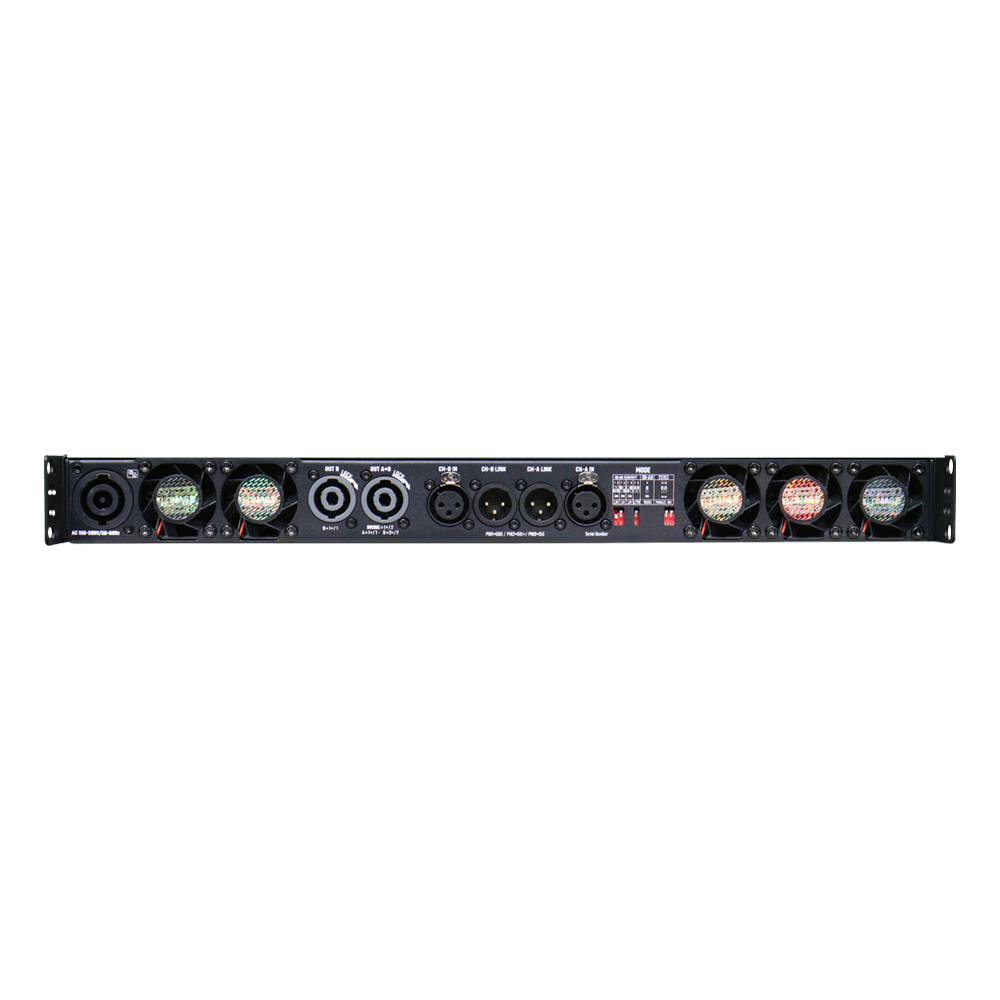

- Balanced XLR inputs and Neutrik NL4 speaker outputs
Reliability & Protection
- Comprehensive protection: short-circuit, DC, overload, overheat, ultrasonic, RF, voltage peak limit
- Universal AC operation: 100V–260V / 50–60Hz
Compact & Lightweight
- 1U rack design
- Dimensions: 500 × 483 × 45 mm
- Net weight: 12.5 kg
