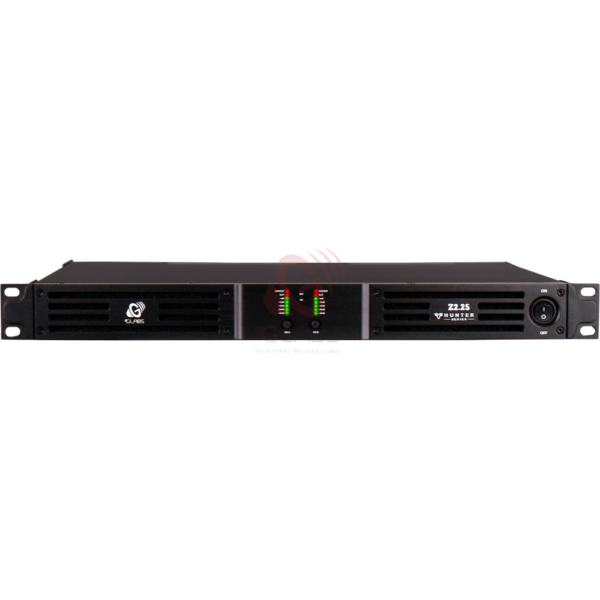

GLABS Z2.25 AMPLIFIER

Description

• The GLABS Z2.25 delivers exceptional stereo power with 2 x 2600W RMS @ 8Ω, 2 x 4355W RMS @ 4Ω, and 2 x 6435W RMS @ 2Ω, providing versatile and powerful output for demanding professional audio applications.

• In bridge mode, it offers substantial power output options of 5200W @ 16Ω, 8580W @ 8Ω, and 10,920W @ 4Ω, ideal for driving large subwoofers or high-power speaker systems.

• Ensures accurate sound reproduction with a wide frequency response of 10Hz to 20kHz ±0.35dB and very low distortion with THD+N <0.5% @ 8Ω, 1kHz.

• Maintains a high signal-to-noise ratio of >102dB and excellent channel separation with crosstalk >70dB at 1kHz, delivering clean and clear audio output.

• Features a fast slew rate of >30 V/μs and a high damping factor of >5000 (8Ω) from 20Hz to 100Hz, providing tight speaker control and precise bass response.

• Offers selectable input sensitivity options of 0.775V, 1V, 1.4V, and 2V with balanced XLR inputs (pin 1 ground, pin 2 positive, pin 3 negative) and input impedance of 10KΩ balanced / 20KΩ unbalanced for flexible connectivity.

• Output connections include 2 Neutrik NL4 sockets and 2 input posts, supporting professional speaker cabling standards.

• Comprehensive protection circuitry safeguards against short circuits, DC faults, overload, overheating, ultrasonic interference, RF interference and voltage peak limits to ensure reliable operation.

• Operates on a wide voltage range of AC 100V-260V, 50Hz-60Hz, suitable for global usage, protected by a F-30A fuse.

• Efficient Class D amplifier design offers high power output with relatively low heat dissipation and compact size.

• Compact 1U rack-mount chassis measuring 483mm x 415mm x 45mm, with a lightweight design of 10.5 kg net weight (12 kg gross), perfect for space-conscious installations.
