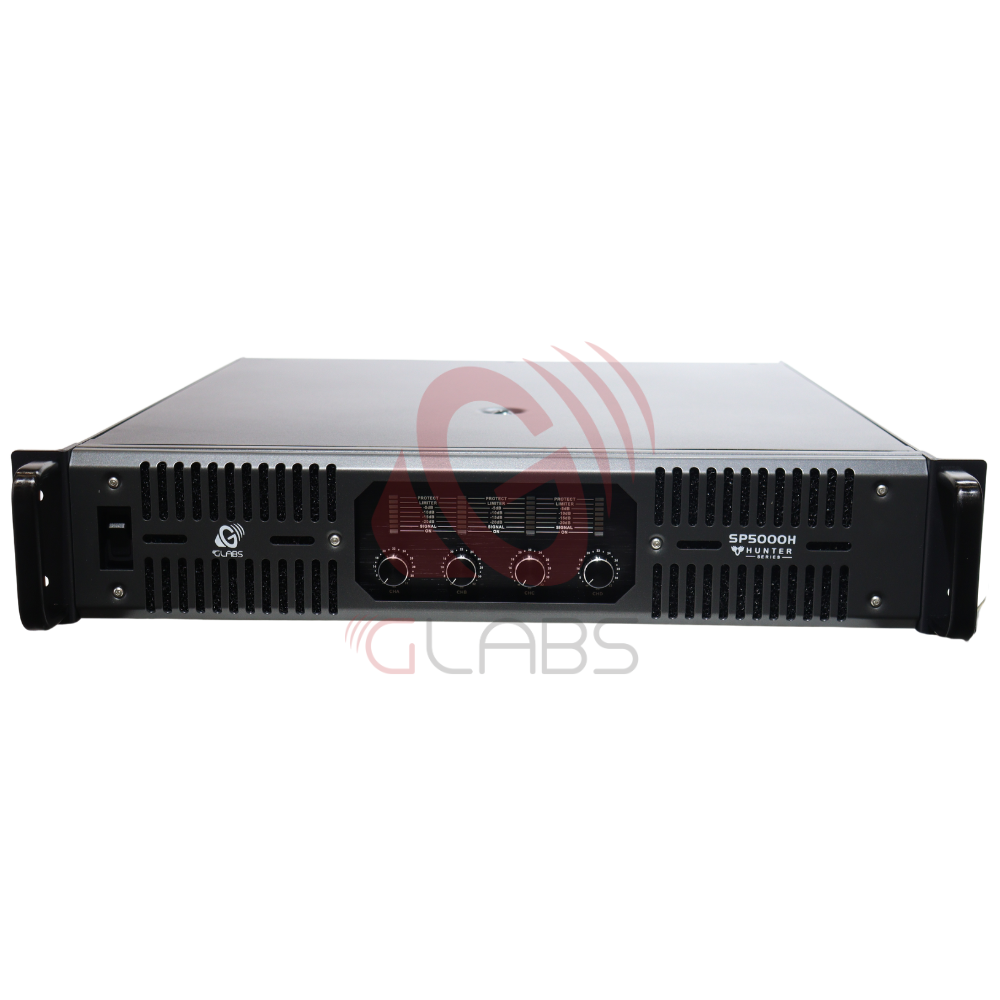

GLABS SP5000H AMPLIFIER

Output Power Stereo (RMS) – 4 x 1000W @ 8ohm

Output Power Stereo (RMS) – 4 x 1500W @ 4ohm

Bridge Mode (RMS) – 2x2000W @ 16ohm.

Bridge Mode (RMS) – 2 x 3000W @ 8ohm

Bridge Mode (RMS) – 2 x 4000W @ 4ohm

Frequency Response – 10Hz-20KHz/±0.4dB

THD+N (20Hz-20KHz) – €0.5% @ 801kHz

S/N Rate (20Hz-20 kHz) – >100dB

Crosstalk (1KHz) – >70dB

Slew Rate – >28ν/με

Damping Factor – >3000 (8Ohm) 20Hz to 100Hz

Voltage Gain – 41.3dB (0.775V:89.5V

Input Sensitivity – 0.775 V.1 V.1.4V

Input Impedance – 10K Q balance/20K unbalance

Input Connectors – XLR Active balanced pin1 gnd/pin 2+/pin3-

Output Connectors – 4 Neutrik NL4 Sockets/4 input posts

Protection – short-circuit, DC overload, overheat,ultrasonic, RF, voltage peak lim it

Operating Voltage – 110V/220V available

Fuse – F-25A

Power consumption (Idle) – <40W

Power consumption. (Max) – <4000W

Cicuit – Class H

Dimensions (LxWxD) – 483mm×492mm×90mm (2U)

Package (LxWxD) – 610mm×550mm×145mm.

Net Weight – 29Kg

Gross Weight – 31.5Kg

Description

  • The GLABS SP5000H delivers robust multi-channel power, featuring 4 x 1000W RMS @ 8Ω and 4 x 1500W RMS @ 4Ω, engineered to handle demanding professional sound reinforcement and multi-zone audio applications.
  • In bridge mode, it provides flexible power output options: 2 x 2000W @ 16Ω, 2 x 3000W @ 8Ω, and 2 x 4000W @ 4Ω, ideal for driving subwoofers or high-power speaker arrays with ease.
  • Offers a broad and accurate frequency response of 10Hz to 20kHz ±0.4dB, ensuring clear, detailed sound reproduction across the entire audible range.
  • Maintains low distortion levels with THD+N < 0.5% at 8Ω, 1kHz, preserving audio fidelity even at high volume levels.
  • High signal-to-noise ratio >100dB and crosstalk >70dB at 1kHz deliver clean, noise-free sound with excellent channel separation.
  • Designed for fast transient response with a slew rate >28 V/μs, and a strong damping factor >3000 (8Ω) from 20Hz to 100Hz, providing tight control over speaker drivers for accurate bass and detailed output.
  • Features a voltage gain of 41.3dB (0.775V input to 89.5V output) compatible with professional audio sources, and input sensitivity selectable between 0.775V, 1V, and 1.4V.
  • Equipped with XLR active balanced inputs (pin 1 ground, pin 2 positive, pin 3 negative) and 4 Neutrik NL4 speaker output connectors alongside 4 input posts for versatile connection options.
  • Comprehensive protection includes safeguards against short circuits, DC faults, overloads, overheating, ultrasonic interference, RF interference and voltage peak limiting to ensure durability and reliability.
  • Operates on selectable 110V/220V power supply, with a protective F-25A fuse.
  • Power efficient with <40W idle power consumption and maximum power draw under 4000W, suitable for professional touring and fixed installation systems.
  • Built into a rugged 2U rack-mount chassis measuring 483×492×90mm, weighing 29kg net (31.5kg gross), balancing high output power with a manageable footprint and weight.
